Description
Better Engineering rotary drum washers use a rotating, perforated stainless steel drum with an internal helix to tumble, drain, and convey parts through one or more cleaning stages. As parts move through the drum, they are exposed to controlled wash, rinse, blow-off, and drying processes that remove oils, chips, coolants, residues, particulate, and manufacturing debris.
The result is consistent, hands-off cleaning for fasteners, stamped parts, cast die parts, screw machine parts, small plastic parts, ammunition components, scrap parts, aerospace fasteners, metalworking parts, and other bulk components.
Industrial Drum Washer for High-Volume Bulk Parts Cleaning
Better Engineering rotary drum parts washers are built for production environments where small parts need to move continuously through a controlled cleaning process. Parts can be loaded continuously by hopper, conveyor, chute, or upstream production equipment, and part flow can be metered to regulate dwell time, throughput, and cleaning performance.
As parts travel through the rotating drum, the system combines smooth tumbling action with spray washing, immersion, rinsing, blow-off, and drying technologies. This helps flush hollow parts, expose multiple surfaces, and clean exterior features without requiring operators to fixture or handle each component individually.
Smooth Tumbling with Controlled Part Flow

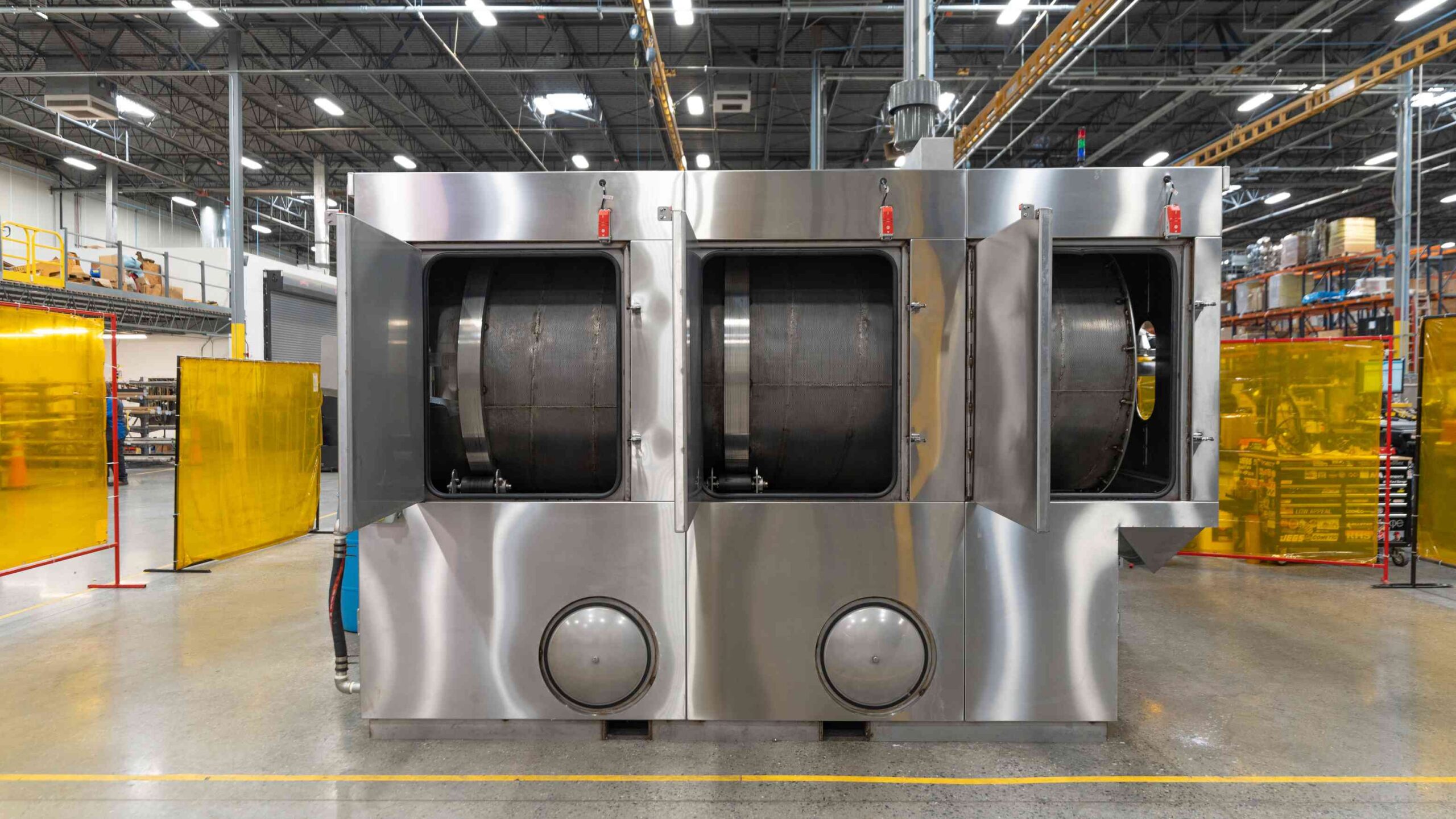

The perforated stainless steel drum allows fluid to drain quickly between process stages, while the welded internal helix gently tumbles and conveys components forward. Depending on the application, the drum can be configured to carry parts through spray zones, immersion zones, or a combination of both, allowing components to receive the right mix of mechanical spray impingement, soak time, fluid exchange, and rinse coverage.
This design helps expose multiple part surfaces to wash solution, rinse water, and drying air without requiring operators to fixture each part individually. That makes rotary drum washers especially valuable for small, durable components where manual handling would be slow, inconsistent, or impractical.
Built for Wash, Rinse, and Dry Processing
Rotary drum washers can be configured with spray stages, immersion stages, or a combination of both. Depending on the part geometry, soil load, and cleanliness requirements, systems can include heated aqueous wash, recirculated rinse, fresh rinse, air blow-off, and heated drying stages.
For example, high-volume fastener applications may use a multi-stage process with wash, rinse, fresh rinse, and heated dry to deliver consistent cleaning and part readiness at production-scale throughput.
The screenshot you provided also notes common use in ammunition, aerospace, and metalworking industries.
Modular, Application-Specific Design
Better Engineering rotary drum washers can be tailored to the application, including drum diameter, perforation size, helix pitch, helix height, process stages, drying requirements, and part flow. Standard modules and accessories allow customers to design an aqueous rotary drum washer around their parts without starting from a blank sheet of steel and sparks.
System Specifications & Configurations
| Specification | Details |
| Product type | Rotary Drum Parts Washer |
| Also known as | Drum parts washer, rotary drum parts washer, tumbling parts washer, industrial drum washer, bulk parts washer, rotary drum washer, fastener washer, automated drum washer, bulk component washer |
| Primary use | High-volume, in-line cleaning and drying of small to medium bulk parts |
| Loading style | Continuous loading or metered loading |
| Part movement | Rotating perforated drum with welded internal helix |
| Drum function | Tumbles, drains, and conveys components through cleaning stages |
| Cleaning methods | Spray, immersion, or combined spray/immersion |
| Detergent type | Environmentally safe aqueous-based detergents |
| Drying option | Hot air drying |
| Air reuse | Up to 90% of dryer air can be reused |
| Maximum hot air dryer temperature | Up to 250°F |
| Drum drive | Variable-speed drum drive, positively driven with a chain |
| Wetted construction | Stainless steel wetted parts, generally grade 304 |
| Modular design | Systems can be expanded or changed without a torch or welder |
| Common industries | Ammunition, aerospace, metalworking |
Drum Sizes
| Drum Diameter | Application Fit |
| 14″ | Small parts, lower-volume bulk cleaning, compact production needs |
| 24″ | Small to medium parts, higher part flow, general bulk cleaning |
| 36″ | Medium-volume industrial bulk cleaning |
| 48″ | Higher-volume bulk component cleaning and larger part flow |
Custom Drum Design Variables
| Design Variable | Purpose |
| Perforation size | Matched to part size and drainage requirements |
| Helix pitch | Controls how parts advance through the drum |
| Helix height | Helps manage tumbling action and part movement |
| Drum diameter | Sized around part volume and throughput |
| Drum speed | Variable speed for dwell time and process control |
| Stage sequence | Configured around wash, rinse, fresh rinse, blow-off, and dry requirements |
