Turntable Washers

Purifier Series - Heavy Duty Parts Washers

The main design premise of the Purifier parts washer line is the ability to perform heavy-duty cleaning. Of the three groups of turntable machinery that Better Engineering offers, this is the “muscle” line for cleaning the dirtiest parts. These heavy-duty parts washers can incorporate multiple cleaning stages – wash, rinse, dry, or a combination thereof. Notable features include:

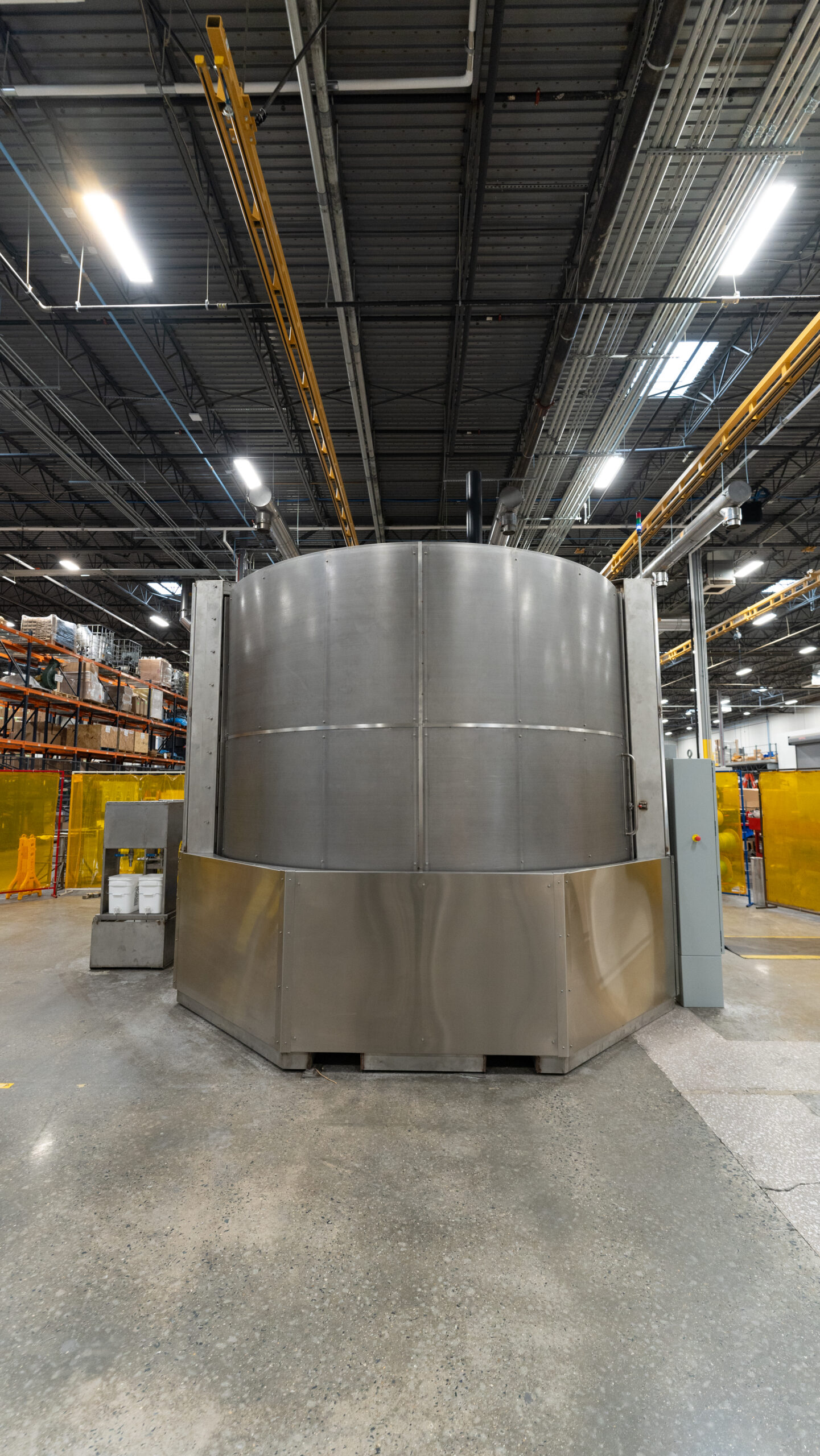

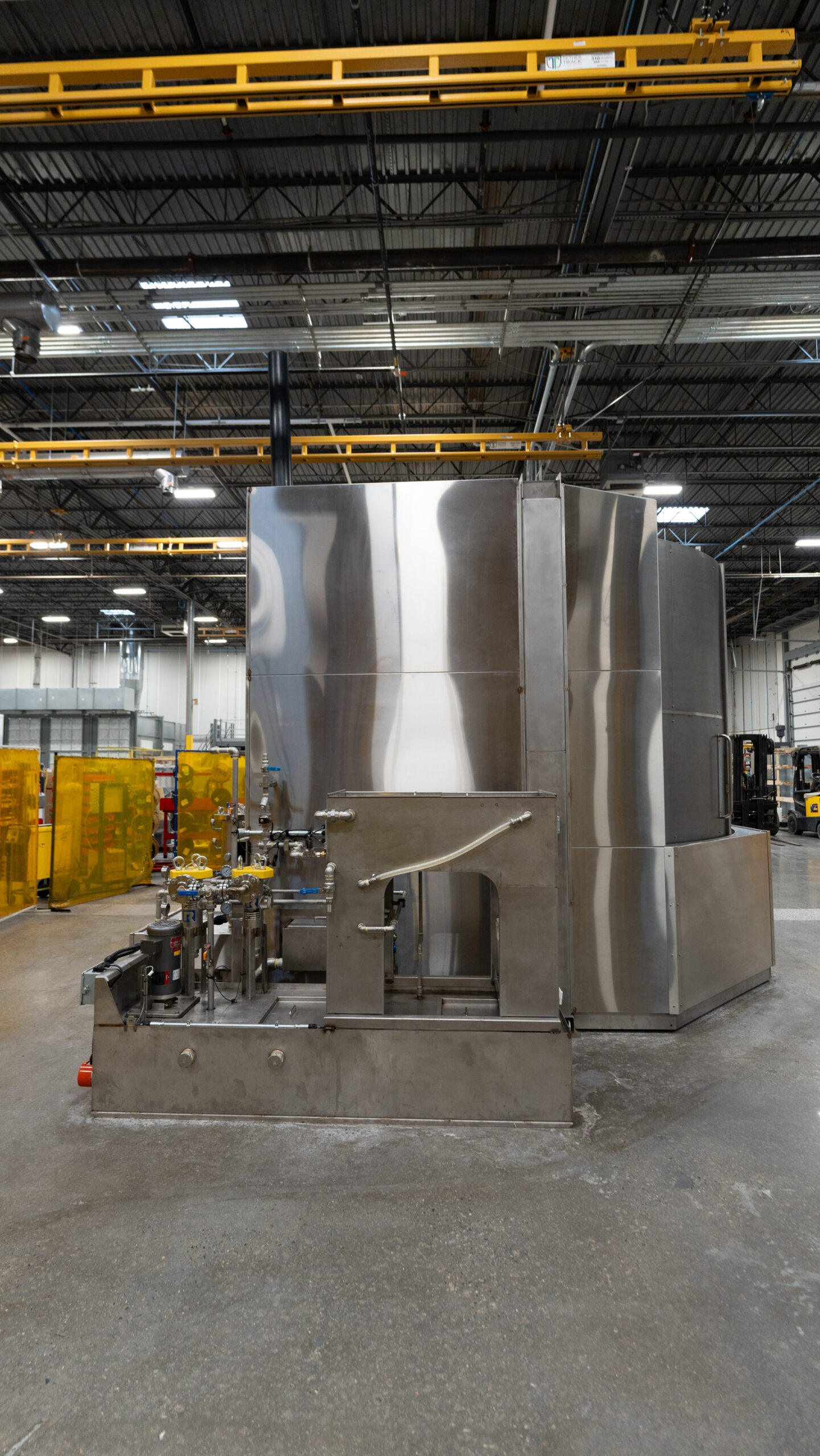

  • Choose from four (4) cabinet styles of parts washers: top-loading, front-loading hinged door, front-loading roll-in door, and vertical door.
  • Rinse and dry stages are optional.
  • Big, vertical (seal-less) pumps for heavy-duty cleaning.
  • Large heated tanks with “Purifier” filtration
  • Sealed cleaning chamber
  • Generous tank access to remove heavy dirt loads
  • Available in either mild steel or stainless steel

The namesake feature of these models is the “Purifier” filtration system, which significantly extends the life of the washing solution. After the solution sprays the parts, it flows through a removable filtration basket to the rear of the tank, where most of the sediment is trapped for removal. Meanwhile, the automatic oil skimming system continuously removes floating oils.

The design of the Purifier line of heavy-duty parts washers incorporates features for safe and easy part loading. In particular, turntables are mounted on a structural beam tied to the ground so that the door bears none of the load. Thus, the load is never suspended or cantilevered. As a result, this design safeguards against parts falling on the operator when loading or unloading the system.

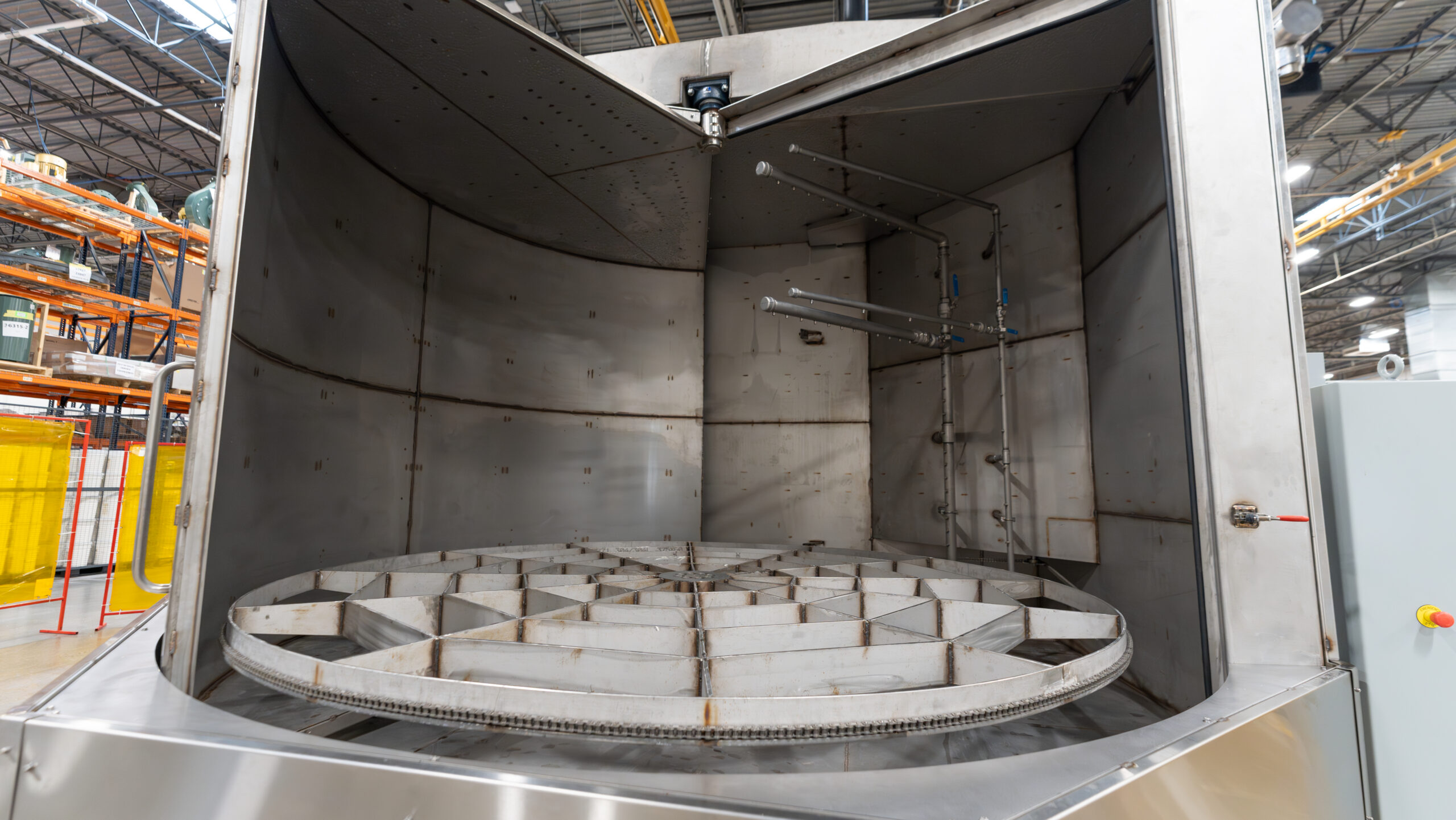

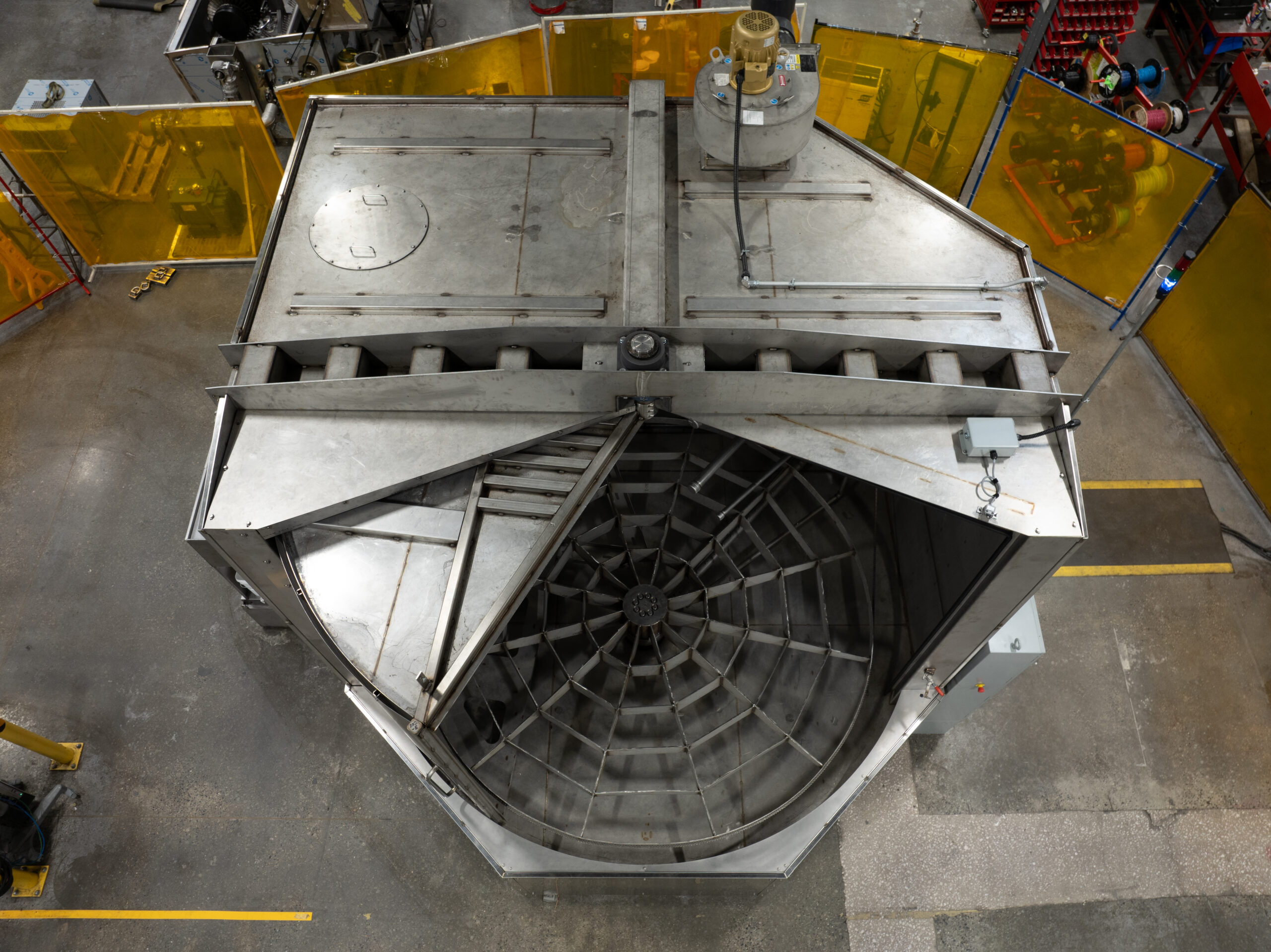

Additionally, parts are loaded directly on the turntable. On our front-loading hinged door models, 55% of the turntable is exposed, allowing a hoist chain to be positioned over the center of the turntable. Likewise, the front-loading roll-in door models allow for center hoist loading where the turntable center is in front of the door axis. Similarly, the cabinet on the top-loading models slopes downward, so the loading edge is closer to the ground and turntable surface for easy loading.

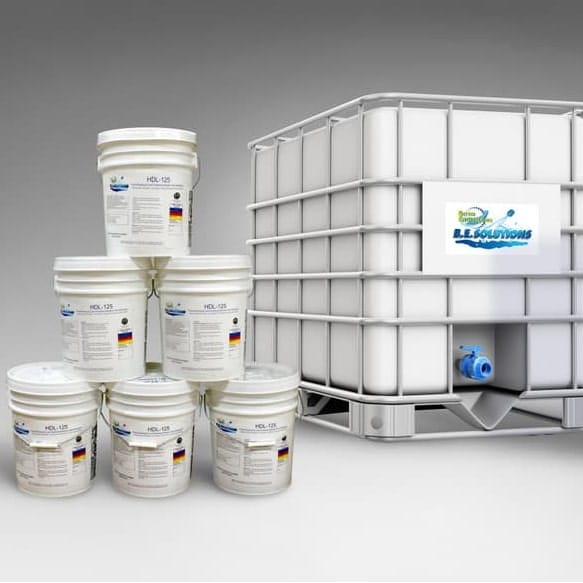

These powerful, heavy-duty parts washers clean the dirtiest of parts in just minutes utilizing environmentally safe aqueous-based detergents for more effective, efficient, and sustainable cleaning. Better Engineering backs all infrastructure elements of the machine with three lifetime guarantees:

  1. All the welds are warranted not to crack, fracture, or leak*
  2. The turntable and the sealed bearing support assembly are warranted against failure
  3. The doors and lids are warranted never to jam, sag, or twist such that proper operation and sealing is impeded

    *Warranty void if leaks are caused by corrosion.

  • “Purifier” Filtration System

  • Lifetime Guarantee

  • Four Cabinet Styles Available

  • Vertical Seal-less Pumps

  • Automatic Oil Skimmer
  • 7-Day/24-Hour Timer
  • Chain Drive System

  • TEFC Drive Motor

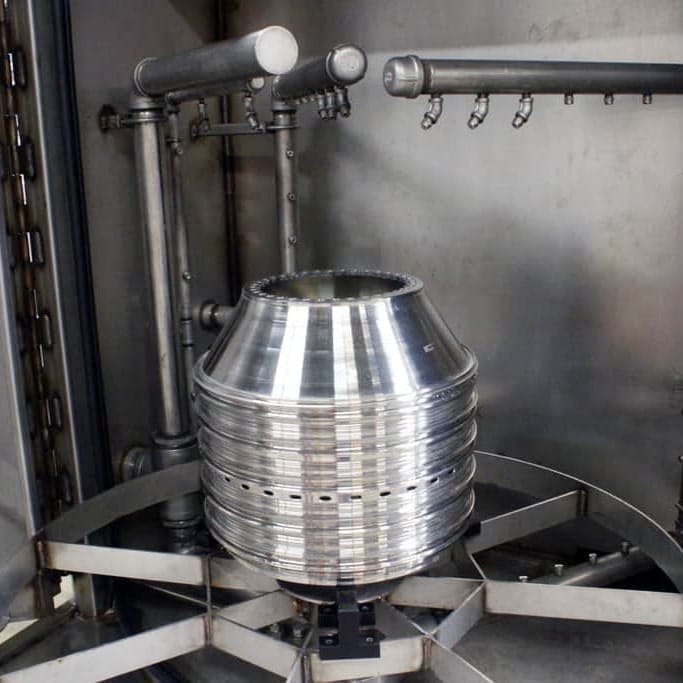

  • Stainless Steel "V" Jet Spray Nozzles

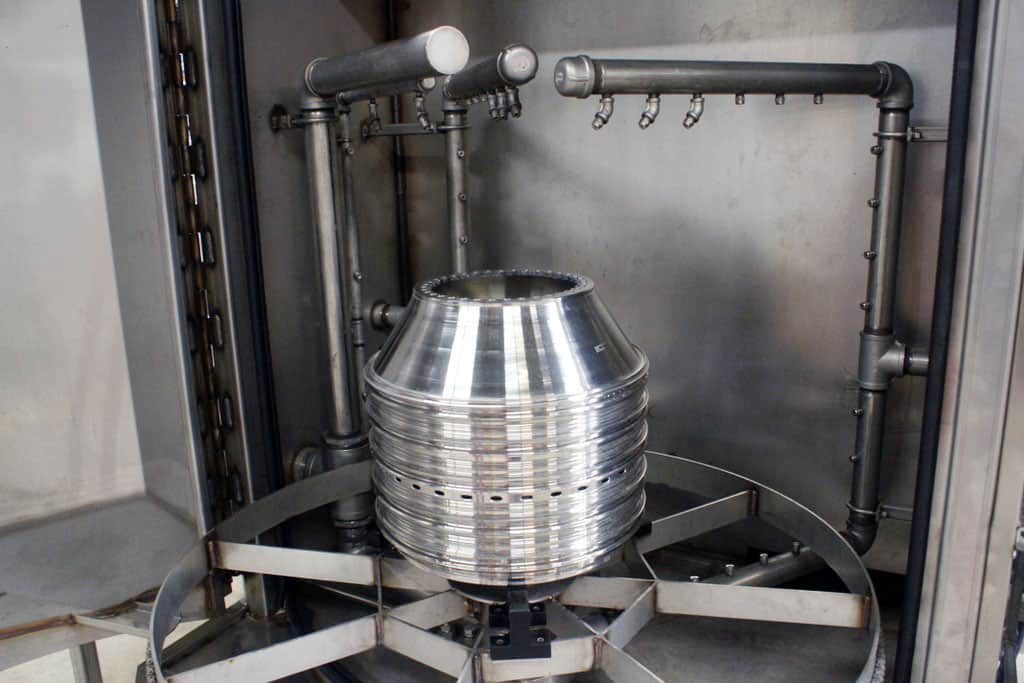

  • Spray Manifolds Surrounding the Turntable
  • Mid-level Pivoting Spray Manifold on Front-load Washers
  • Removable Stainless Steel Filtration Basket

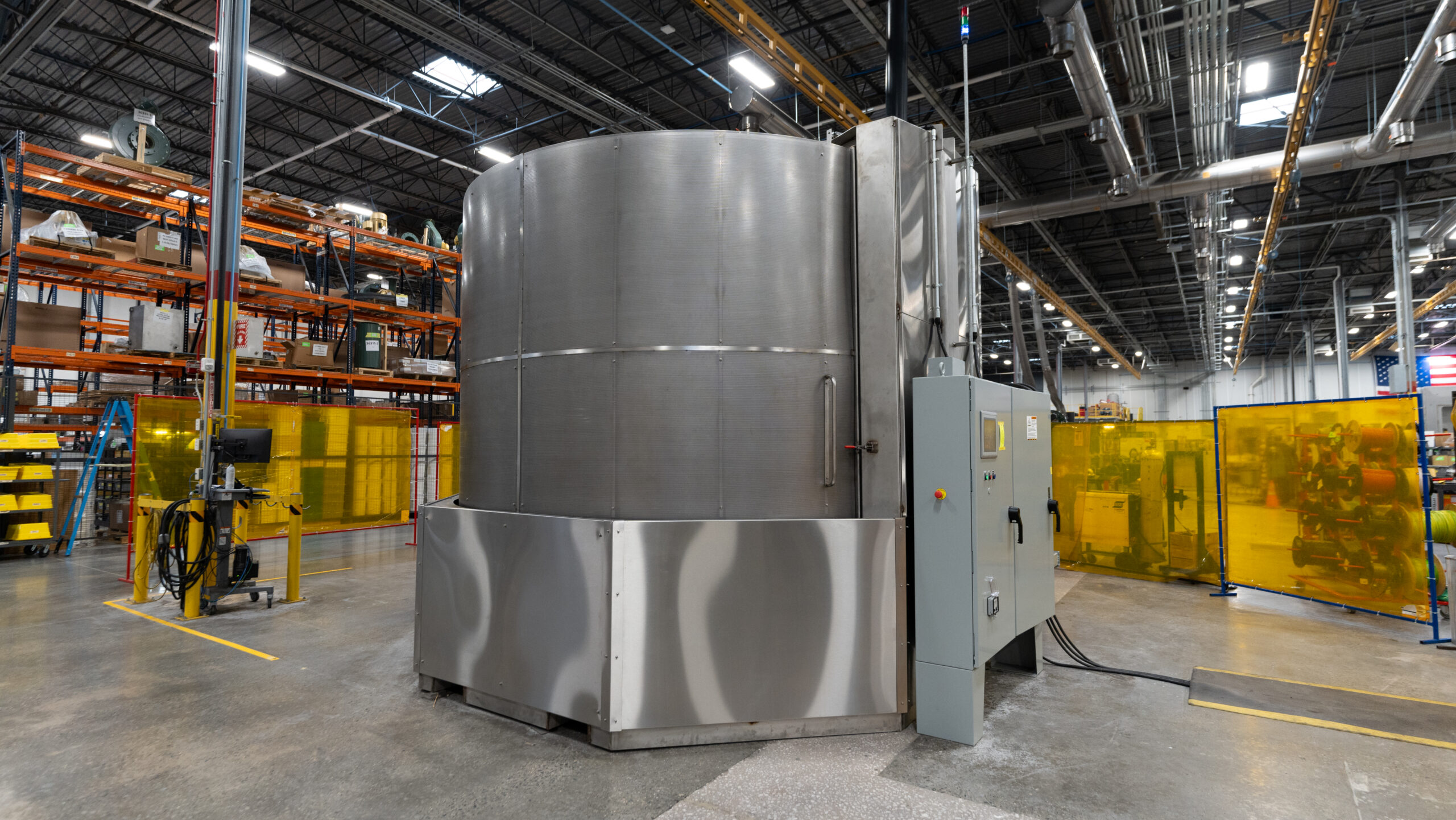

  • NEMA-12 Central Control Station with PLC and HMI

  • Load is Never Suspended or Cantilevered

  • “ZXX” Upper Turntable Basket
  • Fresh Water Rinse
  • Recirculated (separate tank) Fresh Water Rinse
  • Drying Systems

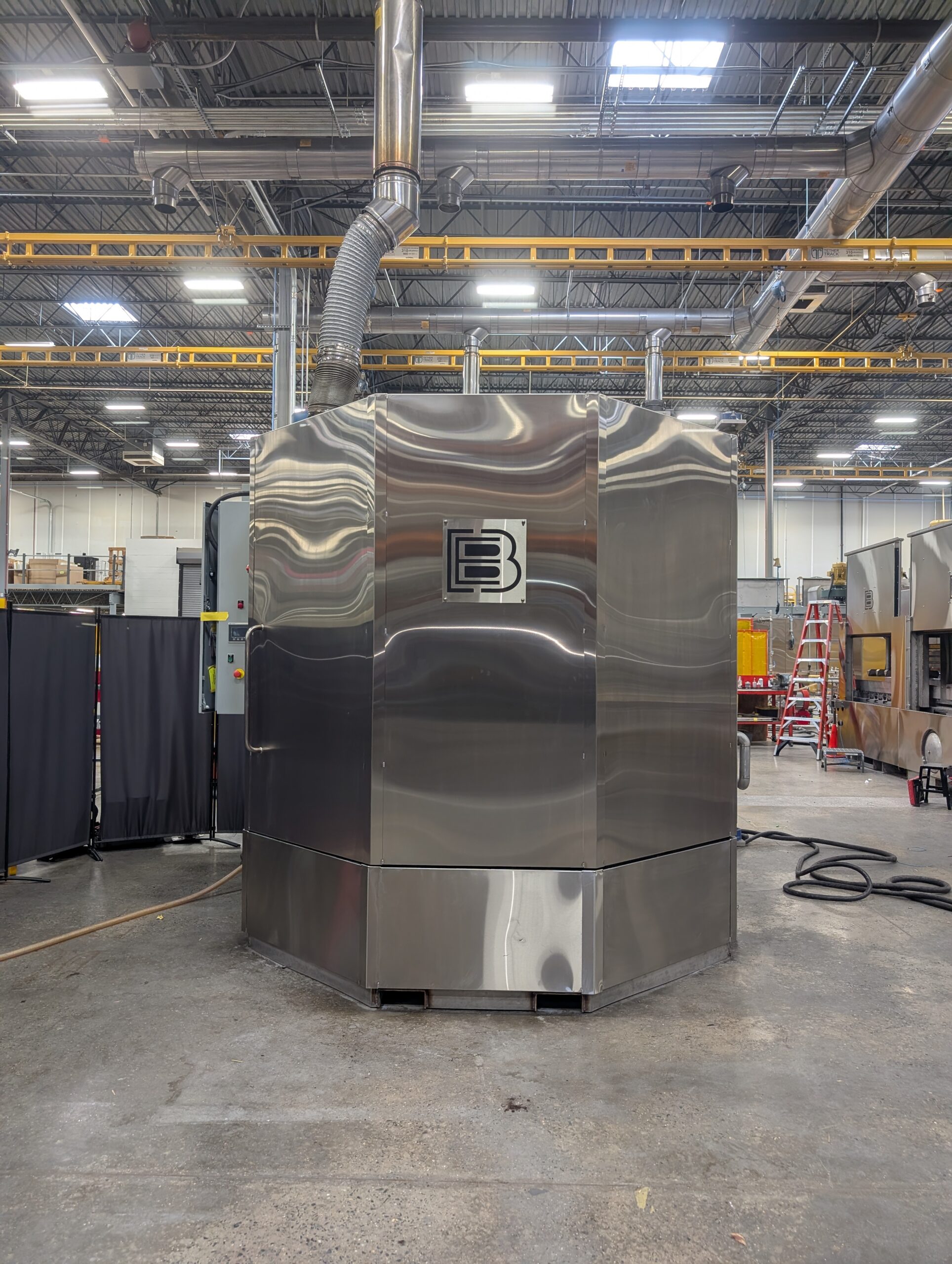

  • Steam Exhaust System
  • Macro Filter
  • Micro Filter
  • Oscillating Spray Manifold
  • Water Level Controls
  • Coated Baskets
  • Small Parts Baskets
  • Hand Brush
  • Hydro-air Rinse Gun
  • Side Tray
  • Locking Door Switches
  • End-of-cycle Beacon Lights
  • Gas or Steam Heat
  • Allen Bradley CompactLogix PLC and PanelView Plus 7 HMI, 10” color screen

  • Increased Height or Weight Capacities
  • Pump Upgrades
