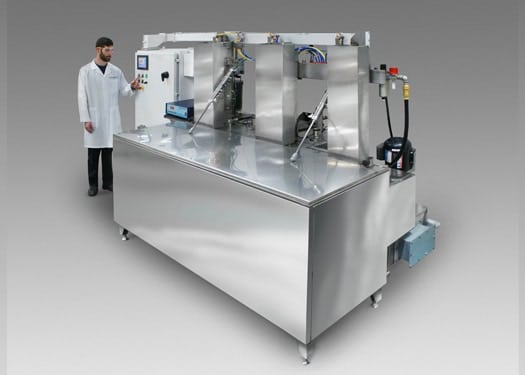

Immersion Ultrasonic Washer S-22/14
Better Engineering found a way of extending the tanks beyond the cylinders that power the platforms; the larger tanks hold more chips/ dirt and keep the contaminants away from the parts for greater cleaning capacity.
No more side tanks and floor sprawl… the pumps required for agitation and filtration and the oil skimmers are now mounted to the main tanks to reduce footprint.
Floating oils are swept away with a spray manifold to achieve cleaner parts… before parts are lifted out of a bath, oils are blown to the “new” rear tank extension and windows power shut to trap the oils in the skimming section.
Pneumatic controls power each 22” long x 14” wide agitating platform for better platform agitation.
The pumps required for agitation and filtration and the oil skimmers are now mounted to the main tanks.
NEW TECHNOLOGY... BETTER AGITATION
The ImmersoSonic line of machinery has established a new, higher standard for immersion washers with its models S-22/14 and S-32/24.
-
Better Platform Agitation… designed around a 22” long x 14” wide and a 32" long x 24" wide agitating platform, respectively; linear guide rails and other features make this “engine” smoother and more reliable
-
Modular Design… three (3) types of modules and numerous options make it easy to have the ideal system with unlimited stages
-
Larger tanks… BE found a way of extending the tanks beyond the cylinders that power the platforms; the larger tanks hold more chips/ dirt and keep the contaminants away from the parts
-
No more side tanks and floor sprawl… the pumps required for agitation and filtration and the oil skimmers are now mounted to the main tanks
-
New oil skimming technology/ cleaner parts… before parts are lifted out of a bath, oils are blown to the “new” rear tank extension and windows power shut to trap the oils in the skimming section
-
Optional ultrasonic cleaning
STANDARD FEATURES
The following features are standard on all ImmersoSonic series models.
Powered Platforms for each module
Agitation... up to 200 strokes per minute (short and long strokes)
Three (3) Types of Modules (unlimited stages): 1. Heated (HT) Immersion
Module; 2. Non-heated (CT) Immersion Module; 3. Heated Dry (DH)
Module
Stainless Steel Construction
Full Insulation
"V"-shaped Tank Floors, Pitched to Rear
Pneumatic Controls, includes filter/regulator & silencers
Central Control Panel, Nema 12
OPTIONAL FEATURES
The following features are optional on the ImmersoSonic models.
Ultrasonic Cleaning
Water Level Controls and Auto Fill
Pump for Agitation and Filtration
Micron Bag Filter
Oil Skimmer - Belt Type
Oil Sweeper and Powered Windows for Containment
Full System Enclosure with Lexan Panels
Ventilation Hood
PLC and HMI
Loading Deck
Unloading Deck
Main Breaker Disconnect
Sump Tank
Pressure Switch
Flow Sensor
Conductivity Meter
Chemical Dosing Pump
- Chemical Siphon Valve
