Large Immersion Tanks

Better Engineering found a way of extending the tanks beyond the cylinders that power the platforms; the larger tanks hold more chips/ dirt and keep the contaminants away from the parts for greater cleaning capacity.

Compact Design

No more side tanks and floor sprawl… the pumps required for agitation and filtration and the oil skimmers are now mounted to the main tanks to reduce footprint.

Module Control Station

NEMA-12 rated panel with 2-channel 7-day/24-hour timer, digital thermostats, overload control for motors, power buttons, indicator lights, e-stop, and more. (PLC optional)

Powered Lids

Lids are powered automatically with pneumatic cylinders.

Pneumatic Controls

Pneumatic controls power each 22” long x 14” wide agitating platform for better platform agitation.

ImmersoSonic Line

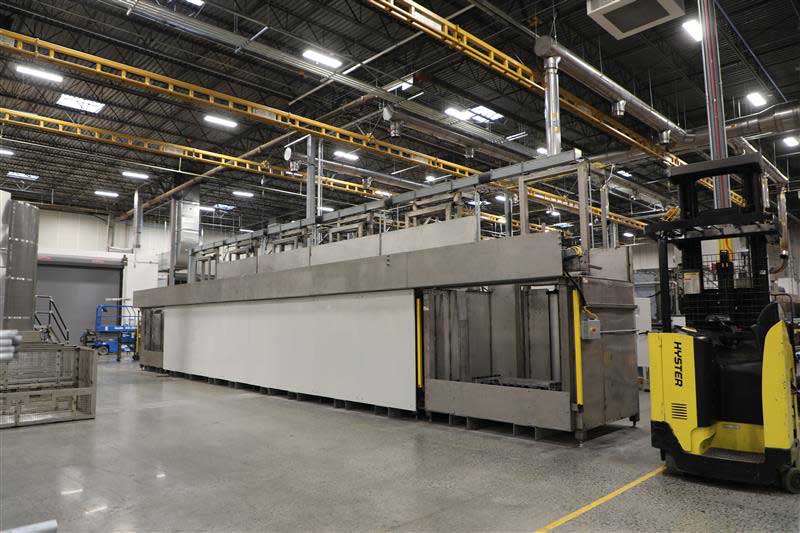

Immersion Ultrasonic Washer Model S-60/36

NEW TECHNOLOGY... BETTER AGITATION

The S-60/36 ImmersoSonic line of machinery has established a new, higher standard for large-tank immersion washers:

  • Better Platform Agitation… designed around a 60” long x 36” wide agitating platform; linear guide rails and other features make this “engine” smoother and more reliable

  • Larger tanks… BE found a way of extending the tanks beyond the pneumatic cylinders that power the platforms; the larger tanks hold more chips/ dirt and moves these solid contaminants away from the parts

  • No more side tanks and floor sprawl… the pumps required for agitation and filtration and the oil skimmers are now mounted to the main tanks; no longer is a special "pump box" or "oil skimming box" needed with a myriad of plumbing connections

  • Modular Design… three (3) types of modules and numerous options make it easy to have the ideal system with unlimited stages; available in either mild steel or (304) stainless steel construction

  • New oil skimming technology/ cleaner parts… before parts are lifted out of a bath, oils are blown to the “new” rear tank extension and windows power shut to trap the oils in the skimming section

STANDARD FEATURES

The following features are standard on all ImmersoSonic series models.

  • Powered Platforms (60" long x 36" wide) for each module
  • Agitation... up to 30 strokes per minute (short and long strokes)
  • Three (3) Types of Modules (unlimited stages): 1. Heated (HT) Immersion
    Module; 2. Non-heated (CT) Immersion Module; 3. Heated Dry (DH)
    Module
  • Powered Lids
  • Full Insulation
  • "V"-shaped Tank Floors, Pitched to Rear
  • Pneumatic Controls, includes filter/regulator & silencers
  • Module Control Station, Nema 12

OPTIONAL FEATURES

The following features are optional on the ImmersoSonic models.

  • Ultrasonic Cleaning
  • Water Level Controls and Auto Fill
  • Pump for Agitation and Filtration
  • Micron Bag Filter
  • Oil Skimmer - Belt Type
  • Oil Sweeper and Powered Windows for Containment
  • Central Control Station (PLC required for 3+ modules)
  • Loading Deck
  • Unloading Deck
  • Main Breaker Disconnect
  • Sump Tank
  • Pressure Switch
  • Flow Sensor
  • Conductivity Meter
  • Chemical Dosing Pump
  • Chemical Siphon Valve

ImmersoSonic Brochure

A complete brochure detailing the individual modules, the standard features, the optional features, and specifications for the ImmersoSonic series of immersion ultrasonic parts washers.
Click to download the ImmersoSonic brochure/specification sheet.
