Operator safety is not a feature. It is the foundation of good equipment design.
But safety is only part of the story.
Design decisions in a cabinet parts washer also impact uptime, maintenance cycles, and long-term operating costs. When critical components are not properly supported or integrated, the result is not just increased risk: it is unplanned downtime, premature wear, and potential compliance issues that affect the entire operation.
Turntables are a common feature in cabinet washers. When designed correctly, a turntable improves consistency in cleaning and throughput. When implemented poorly, a turntable can introduce hidden costs that extend far beyond the wash cycle.
What Is a Cabinet Parts Washer?
A cabinet parts washer, sometimes called a cabinet washer, is an enclosed industrial cleaning system designed to remove oil, grease, chips, carbon, coolant, and other contaminants from manufactured parts. In most configurations, parts are loaded into a sealed cabinet, the door is closed, and the machine runs an automated wash cycle using heated aqueous solution and pressurized spray.
The enclosed, batch-style design is what distinguishes a cabinet parts washer from more manual or methods. Because the wash process takes place inside a sealed cabinet, the system can deliver repeatable cleaning performance while helping contain heat, wash solution, spray, and contaminants. This makes cabinet washers a common choice for manufacturers that have a lower throughput and need reliable part cleanliness, reduced manual handling, and a more controlled cleaning environment.
A cabinet parts washer typically includes several core components: the cabinet structure itself, a wash tank or solution reservoir, pumps, spray manifolds or spray bars, heating elements, filtration, controls, and a method for presenting parts to the spray pattern. In many systems, that presentation method is a turntable, which rotates parts during the wash cycle so cleaning solution can reach multiple surfaces more evenly and consistently.
This rotating platform is important because it affects both cleaning performance and machine design. A well-supported turntable can improve wash coverage, process consistency, and throughput. A poorly supported turntable can introduce unnecessary structural stress, motion in the operator access area, and long-term reliability concerns. For that reason, the way a turntable is mounted inside a cabinet washer matters.
In cabinet parts washers, turntables are generally supported in one of two ways: door-mounted or chassis-mounted.
A door-mounted turntable is attached to the washer door, meaning the load platform moves with the door as the operator opens and closes the machine. In this configuration, the door is not just an access point. The door also becomes a structural support for the rotating assembly and the load placed on it.

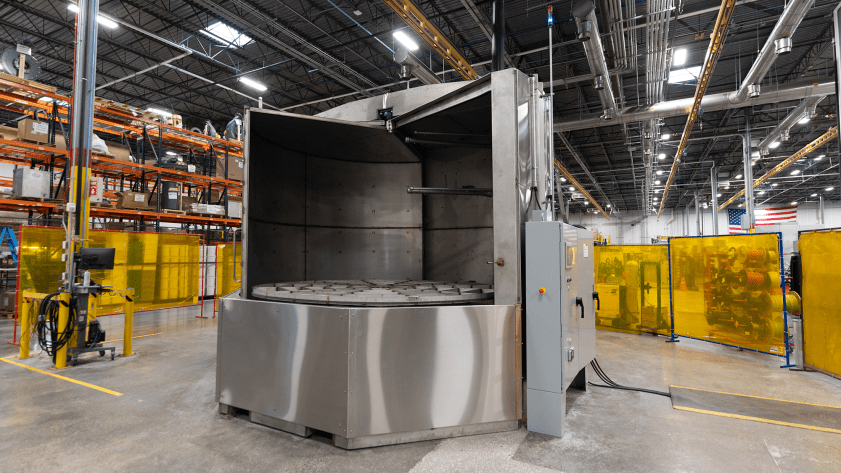

A chassis-mounted turntable is supported by the fixed cabinet structure or machine frame, with the rotating platform mounted on a reinforced beam that is tied directly to the ground through multiple supports. In this configuration, the turntable remains structurally independent from the door, meaning the door bears none of the load and the parts are never suspended or cantilevered. This keeps all primary load and rotational forces contained within the machine chassis, where they can be managed more predictably. As a result, the design not only improves structural stability but also enhances operator safety by eliminating the risk of parts shifting or falling during loading and unloading. That distinction is more than a design preference. It affects load distribution, center of gravity, dynamic stress, operator interaction, and overall machine safety. Once the structure of a cabinet parts washer is understood, the mounting method becomes a critical part of evaluating how safely and reliably the system will perform over time.
When Design Choices Introduce Risk
Not all cabinet parts washer designs manage motion and load the same way. Placement, structural support, and operator interaction zones determine how the system performs under real operating conditions.
An operator interaction zone is the area where loading, unloading, and routine access occur.
Risk increases when motion, weight, and operator access overlap within the same zone. This overlap can lead to instability, fatigue, and unintended movement over time.
One configuration that requires careful evaluation is the door-mounted turntable.
Door-Mounted Turntables: A Closer Look
A door-mounted turntable places a rotating load on the washer door instead of the cabinet frame. This design changes how forces are distributed throughout the system.
Stability and Load Distribution
Mounting a rotating assembly on a door shifts the center of gravity, which is the point where weight is balanced, outward when the door is open.
This creates leverage on hinges and the base structure. If the cabinet parts washer is not properly anchored or the base is undersized, the system may become unstable under load, which increases the risk of tipping. Uneven part placement increases this risk.
Structural Stress from Dynamic Loads
Turntables introduce dynamic loads, which are forces created by motion such as rotation, indexing, and vibration.
When dynamic loads are transferred through a door structure instead of a rigid frame, the system experiences repeated stress cycles. Over time, this can result in:
- Fatigue cracking in weldments
- Loosening of fasteners and connections
- Progressive loss of alignment and rigidity
In high-cycle cabinet washer applications, hinge fatigue has been observed to present as door sag or misalignment well before visible failure occurs.
Pinch Points and Crush Zones
A door-mounted turntable combines door movement with rotating motion in the same physical space. This creates pinch points, which are areas where body parts can be caught between moving components, and crush zones, where force can be applied unexpectedly.
Without proper guarding and controlled motion, these hazards are present during loading and unloading.
Door Design and Ergonomics
Doors on cabinet parts washers must be designed for both weight and motion. Heavy doors without counterweights, gas springs, or controlled motion systems can drop or shift unexpectedly.
Horizontal doors that function as load platforms must be rated for both static and dynamic forces. If not properly engineered, hinge stress and long-term deformation can occur.
Broader Safety Considerations in Cabinet Washer Design
Turntable configuration is one part of a larger system. Other design elements also influence safety and reliability:
- Spray Pressure Exposure
High-pressure spray requires reliable interlocks. An interlock is a safety mechanism that prevents operation when a door or panel is open. Failure can expose operators to hot or chemical spray. - Thermal Hazards
Heated tanks and piping must be insulated. External surfaces that reach high temperatures increase burn risk. - Chemical Exposure
Poor sealing or ventilation allows mist and vapor to escape, exposing operators to cleaning solutions. - Electrical Safety
Electrical components must be isolated from wet zones. Improper routing or enclosure ratings increase the risk of shock or short circuits. - Slip and Fall Risks
Inadequate drainage or overflow control can allow fluids to accumulate around the base of the cabinet washer. - Maintenance Access Hazards
Hard-to-reach service points increase the likelihood of unsafe maintenance practices. - Guarding and Interlocks
Missing or poorly designed systems allow operation under unsafe conditions. - Load Handling and Fixturing
Parts that are not secured can shift during rotation, causing imbalance or ejection.
Each of these factors reinforces a core engineering principle: risk should be designed out of the operator environment whenever possible.
Safer Design Approaches
Safer cabinet parts washer designs prioritize operator separation and structural integrity.
In turntable systems, this includes:
- Mounting rotating assemblies within the cabinet frame
- Isolating motion from the operator interaction zone
- Designing for balanced load distribution
- Implementing robust guarding and interlocks
These design choices reduce exposure to moving components and improve long-term durability.
Questions to Ask When Evaluating a Cabinet Parts Washer
Use this checklist to evaluate system design before purchase or upgrade:
- Where does motion occur relative to the operator?
- Does the door introduce movement into the loading area?
- How is the system supported under full load conditions?
- How are dynamic loads managed over time?
- What interlocks prevent operation during unsafe conditions?
- How are ergonomics addressed during loading and unloading?
- Are maintenance points safely accessible without exposure to heat or motion?
Clear answers to these questions indicate a well-engineered system.
Designing for Safety from the Start
Safety in a cabinet parts washer is the result of deliberate engineering decisions. Turntables can improve cleaning performance, but only when they are integrated in a way that maintains stability, predictable motion, and operator protection.
Better Engineering designs cabinet washers with these principles in mind, ensuring that performance and safety work together rather than compete.
Frequently Asked Questions
What is a cabinet parts washer?
A cabinet parts washer is an enclosed industrial cleaning system that uses high-pressure spray and heated aqueous solutions to clean components. Parts are typically loaded into a cabinet where automated cleaning cycles take place.
What is a door-mounted turntable?
A door-mounted turntable is a rotating platform attached to the washer door instead of the internal cabinet structure. This configuration places both load and motion directly on the door assembly.
Why can a door-mounted turntable be a safety concern?
A door-mounted turntable can introduce instability, dynamic stress on hinges, and pinch points in the operator interaction zone. These factors increase the likelihood of mechanical fatigue and operator exposure to moving components.
What is a safer alternative to a door-mounted turntable?
A chassis-mounted or cabinet-mounted turntable is generally safer because it isolates motion within the machine frame. This design reduces stress on the door and limits operator exposure to moving parts.
