Description

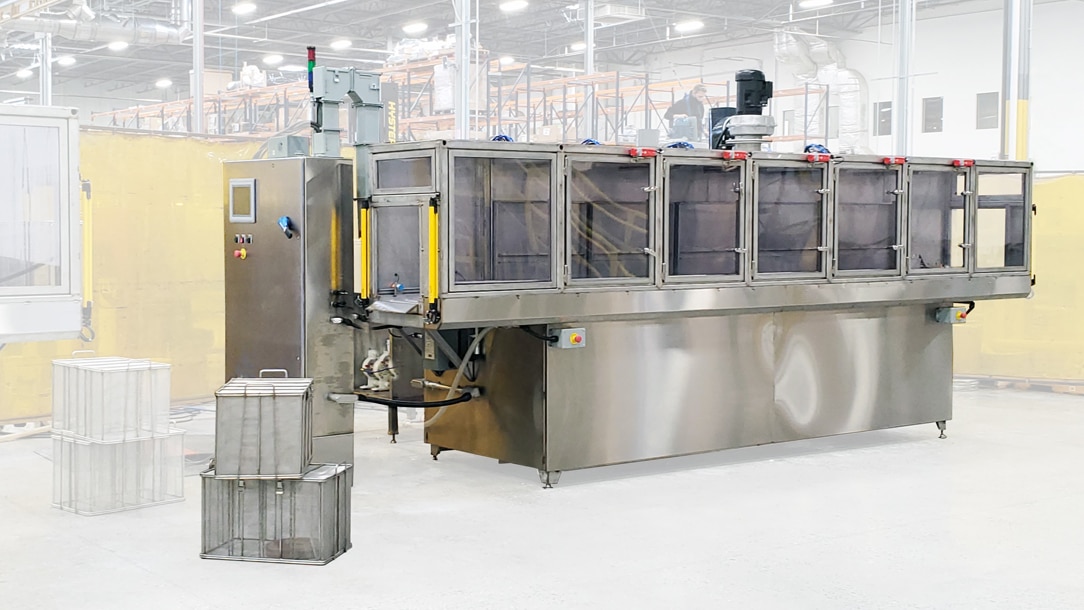

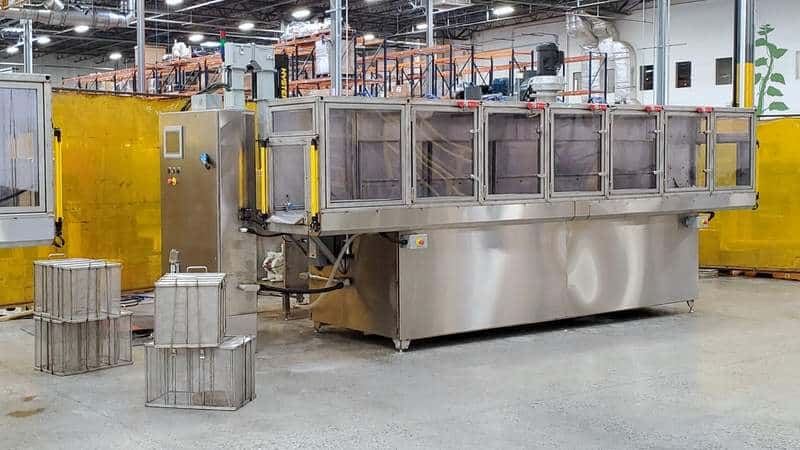

The ImmersoSonic S-22 is a compact industrial ultrasonic parts washer designed for precision immersion cleaning of small to medium components. Built around a 22″ × 14″ powered agitation platform with an immersion depth up to 14’’, the S-22 combines heated immersion, platform oscillation, and optional 40 kHz ultrasonic cleaning to remove contamination from complex parts, blind holes, threads, recesses, and internal passages.

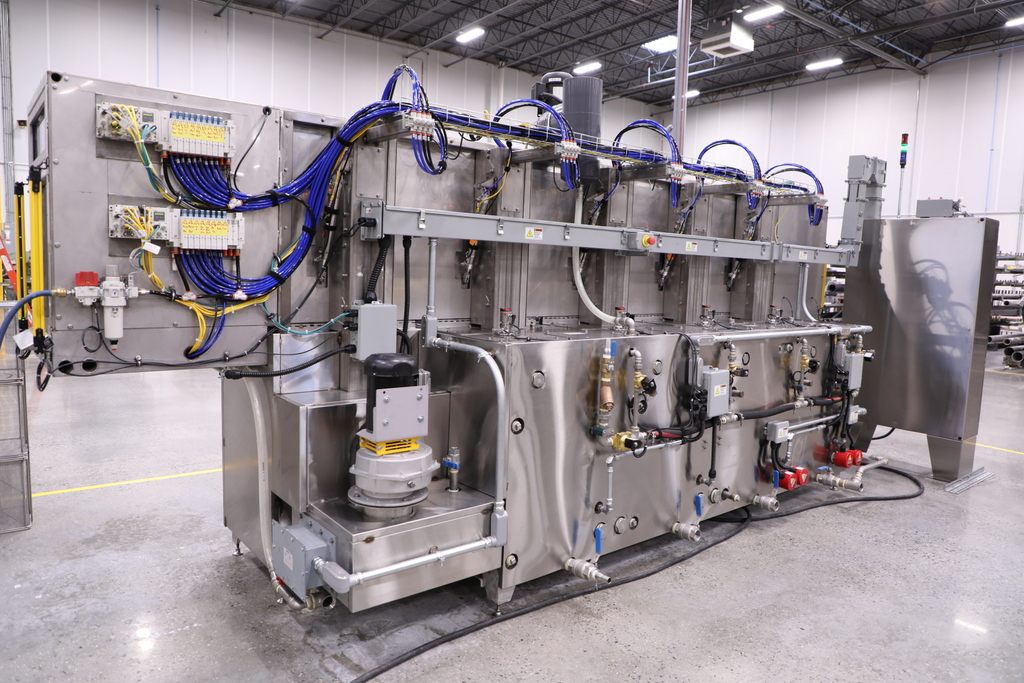

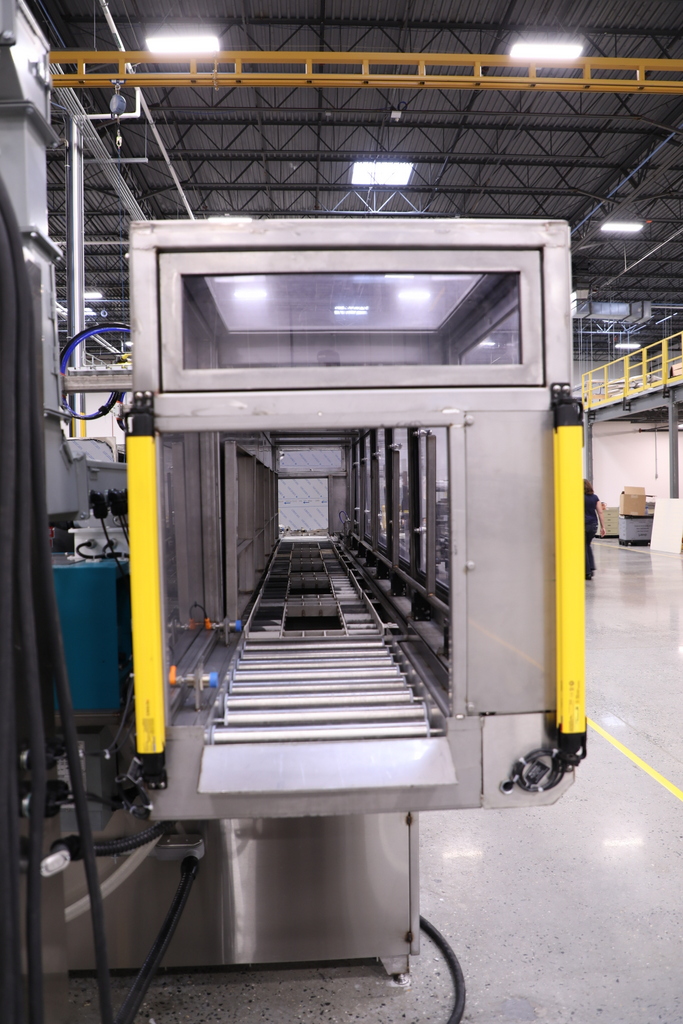

As part of Better Engineering’s modular ImmersoSonic line, the S-22 can be configured as a standalone ultrasonic cleaning system or expanded into a multi-stage wash, rinse, and drying process. Systems can also be integrated with automation options such as tank-to-tank basket indexing, walking beam transfer, overhead gantry systems, robotic loading and unloading, basket rotation, and powered conveyors.
Each system is engineered around your parts, soils, cleanliness requirements, production volume, and available floor space, giving you a compact, flexible cleaning solution that can grow with your process.
Modular Ultrasonic Cleaning System
The S-22 ultrasonic parts washer product line includes three primary modules that can be arranged in the sequence your process requires. Build a single-stage ultrasonic parts cleaner, a wash-and-rinse system, or a complete wash-rinse-dry cleaning line.
- S-22/14-HT: Heated immersion cleaning module with a 100-gallon tank, 12 kW electric heat, powered platform oscillation, and optional ultrasonic cleaning.
- S-22/14-CT: Ambient-temperature immersion cleaning module with a 100-gallon tank and powered platform oscillation for improved rinsing performance.
- S-22/14-DH: Heated drying module with recirculating hot air, powered platform oscillation, centrifugal blower, and an 18 kW air-heat system.
The modular design allows Better Engineering to configure the S-22 around your cleaning process today while supporting future expansion as production or cleanliness requirements change.
Immersion, Agitation & Ultrasonic Cleaning
The S-22 industrial ultrasonic cleaner is designed to do more than soak parts in a tank. Powered platform oscillation moves parts vertically through the bath to improve contact with the cleaning solution and help carry contaminants away from part surfaces.
For applications that require deeper cleaning, optional ultrasonic technology adds high-frequency cavitation to the immersion stage. This cavitation action helps remove fine soils from internal features, threads, small recesses, and other difficult-to-access surfaces that spray-only cleaning may miss.

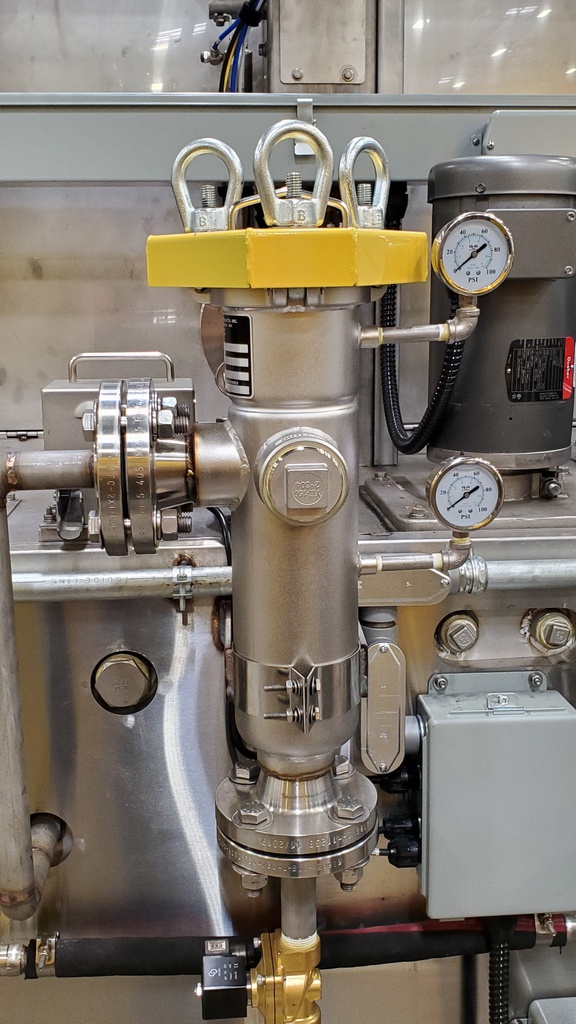

Optional particulate filtration, oil skimming, and oil sweeping systems help manage contamination in the bath and reduce the risk of soils redepositing onto cleaned parts.
Precision Cleaning Applications
The ImmersoSonic S-22 is ideal for manufacturers that need repeatable cleaning results on small to medium components with complex part geometries. Common applications include:
- Medical devices and surgical components
- Aerospace components
- Precision-machined components
- Fuel system parts
- Electronics and connectors
- Valves, fittings, and assemblies
Why Choose the ImmersoSonic S-22 Industrial Ultrasonic Parts Washer?
- Enhanced cleaning performance: Powered platform oscillation moves parts through fresh solution for more consistent cleaning than static soaking.
- Access to complex geometries: Optional 40 kHz ultrasonic cleaning reaches blind holes, internal passages, threads, and recessed features.
- Reduced redeposition: Oil skimming, filtration, and oil sweeping options help remove floating oils and suspended solids from the bath.
- Flexible module sequencing: Combine heated wash, ambient rinse, ultrasonic cleaning, filtration, and drying modules in the order your process requires.
- Industrial stainless steel construction: Wetted parts are built from 304 stainless steel for demanding production environments.
- Expandable design: Add stages or options as production needs evolve without starting from scratch.
