Description
During the cleaning cycle, parts rotate through a spray process or combined spray/flood process, ensuring powerful all-around cleaning performance. This motion helps expose surfaces, recesses, cavities, threads, blind holes, and other difficult-to-reach features to the cleaning solution. Typical cycle times range from approximately 2 to 15 minutes, depending on part geometry, contamination level, cleanliness requirements, and selected process stages.

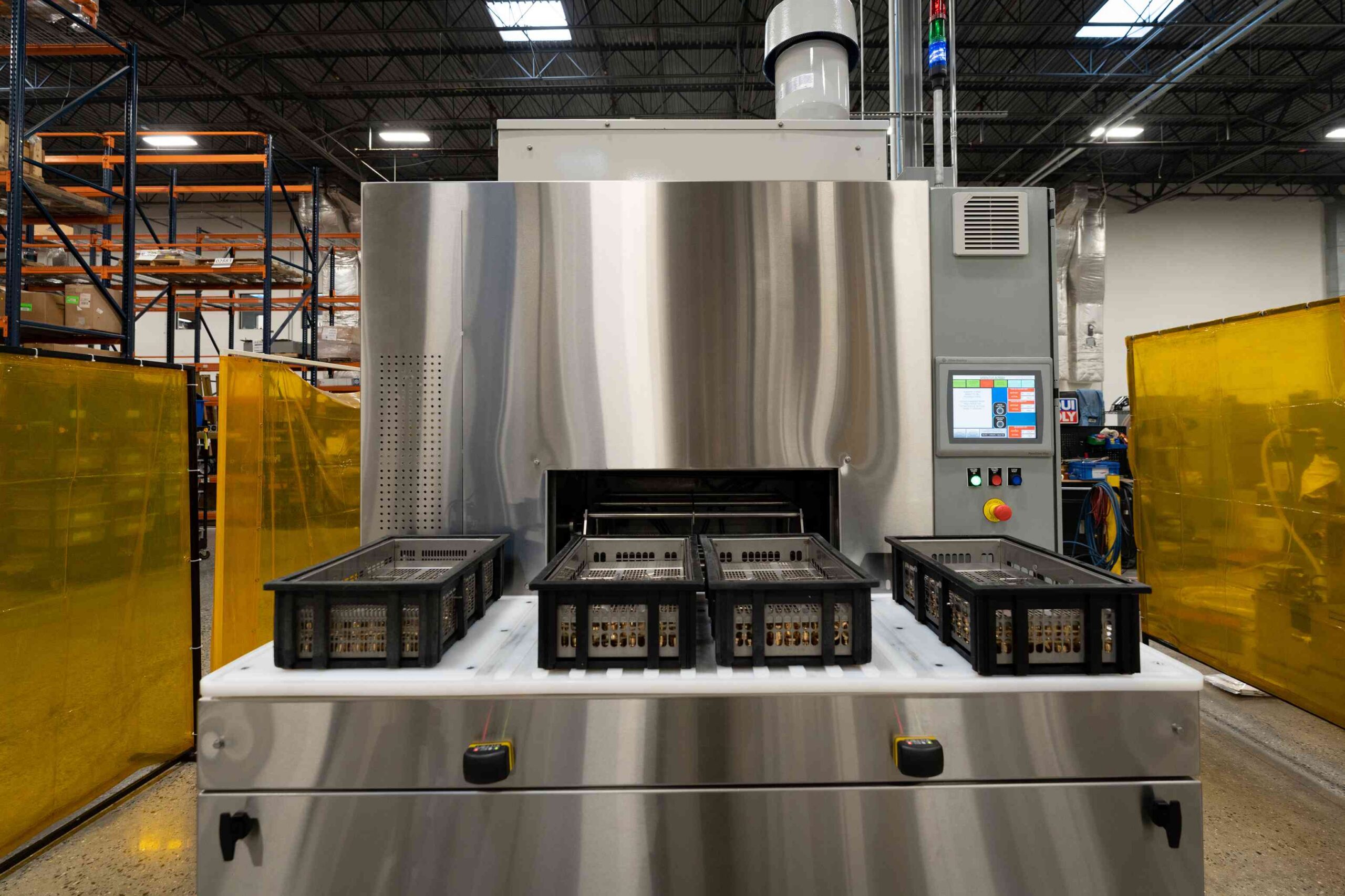

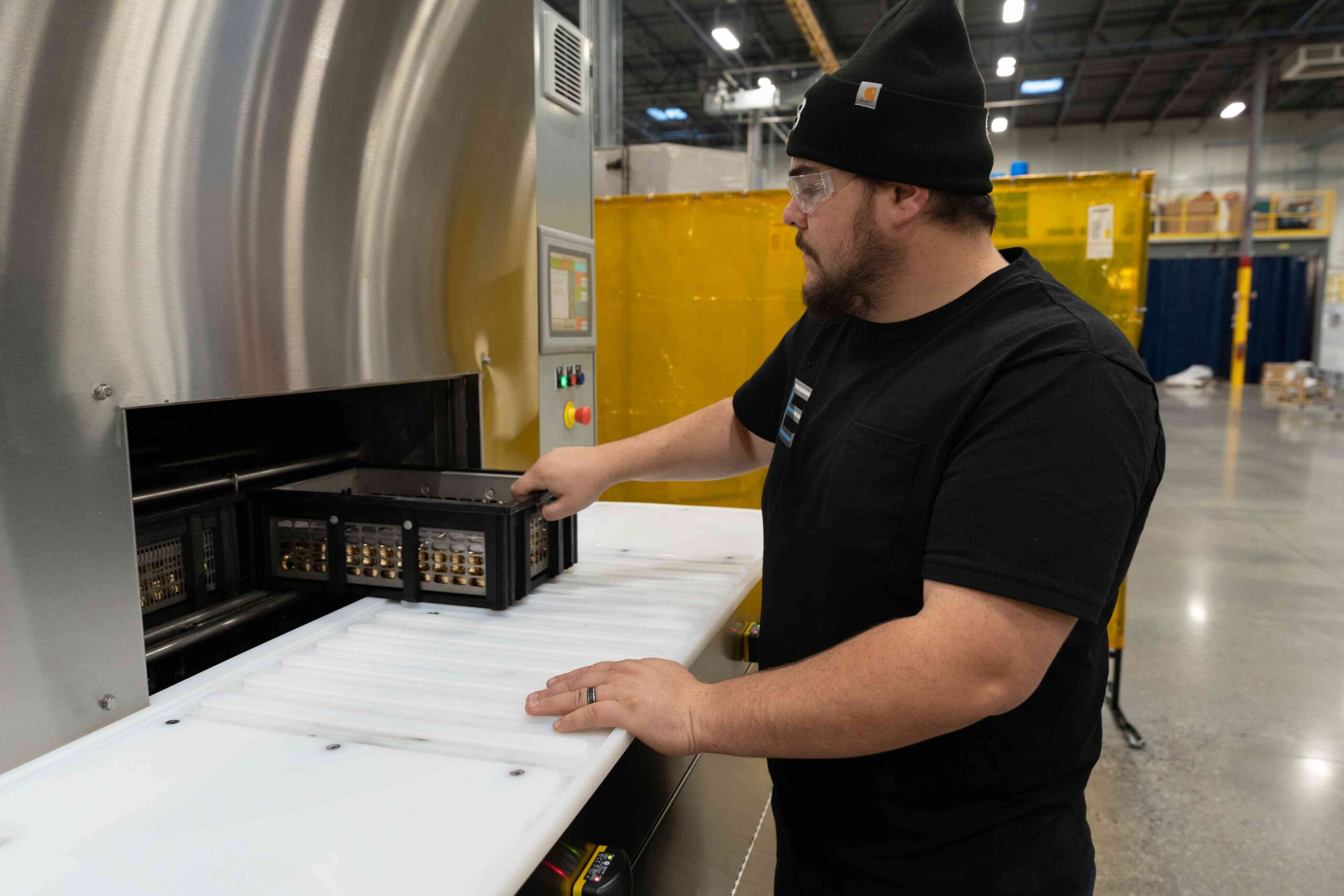

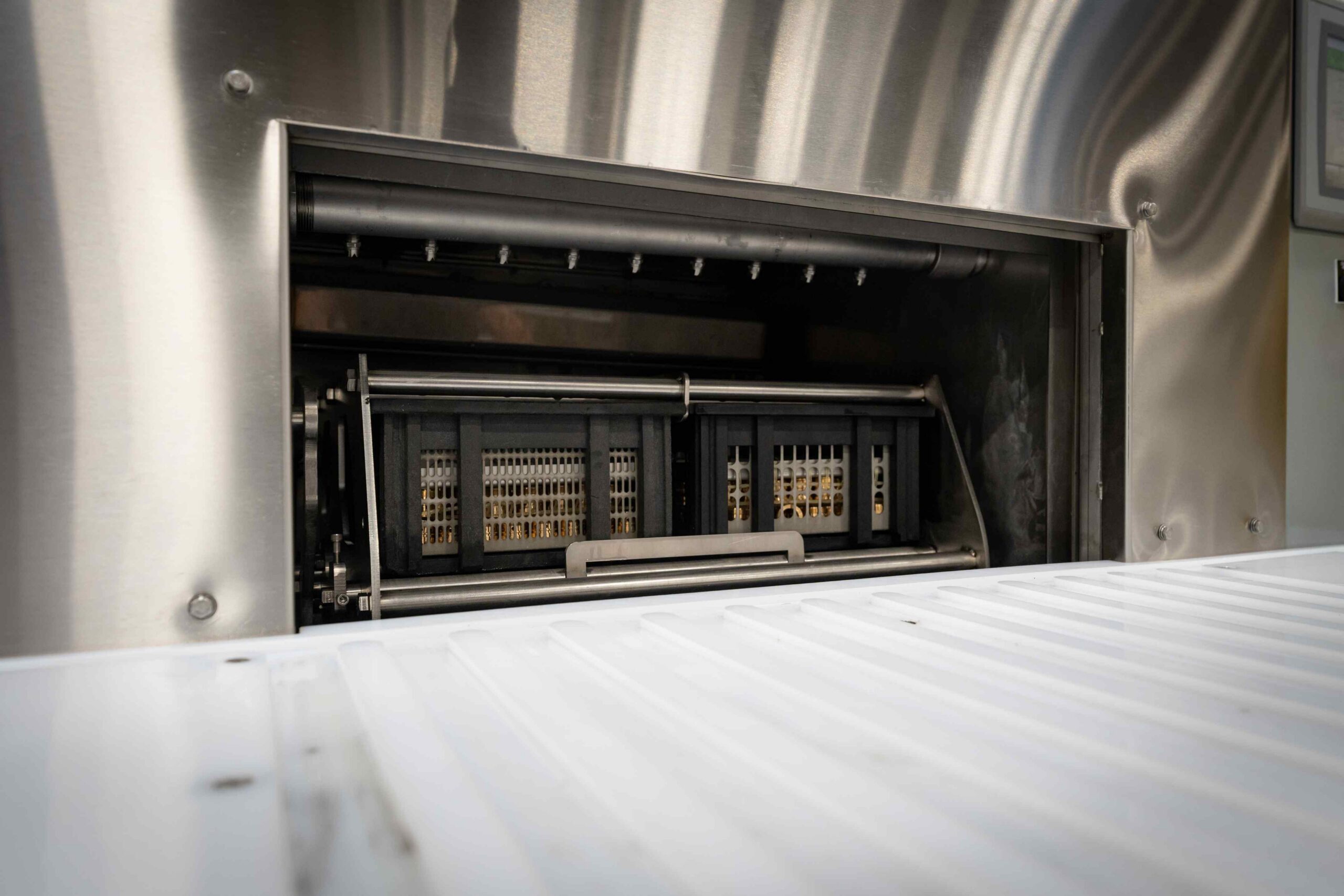

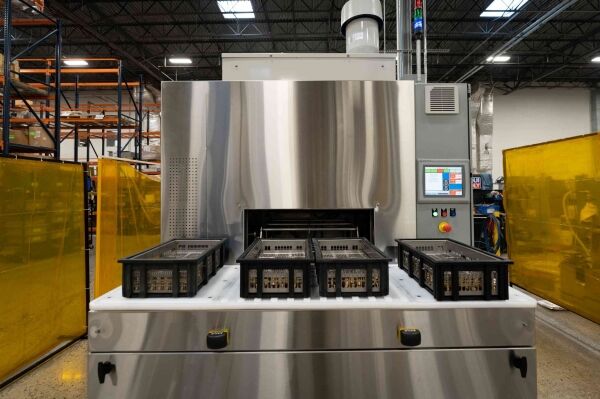

Small parts that benefit from tumbling can be loaded into covered baskets, while larger or more delicate parts can be locked into custom fixtures. Baskets and fixtures can be loaded manually by an operator, who slides the load into the rotor, closes the powered door, and starts the cycle through the HMI. For higher-volume or integrated production environments, Cyclojet systems can also be incorporated into automated work cells with custom loading, unloading, conveyors, robotics, or other material handling systems.
This flexibility makes the Cyclojet line ideal for manufacturers that need precision cleaning, short processing times, and repeatable cleanliness without the footprint of a large conveyorized washer.
The automatic cleaning cycle can be configured with any combination of wash, immersion, ultrasonic cleaning, rinse, blow-off, drying, filtration, oil removal, and process control features required for the application.
Industrial Rotary Basket Parts Washer with Multi-Process Cleaning
The Cyclojet rotary basket washer is built for applications where parts need more than a simple spray wash. By rotating baskets or fixtures through the cleaning chamber, the system exposes parts to cleaning action from changing angles, helping remove oils, chips, fines, particulate, polishing compounds, carbon, coolants, and other manufacturing debris from hard-to-reach surfaces.
This controlled rotational movement improves cleaning coverage across complex part geometries, including blind holes, threads, recesses, internal cavities, cross-drilled passages, delicate surfaces, and nested features that may be difficult to clean in a fixed-position cabinet washer.
Cyclojet systems can be configured with 2, 4, 6, or 8 basket arrangements to match your part volume, cycle time, and throughput requirements while maintaining a compact footprint.
Depending on the application, a Cyclojet system can be configured with:
- Heated aqueous spray washing
- Heated aqueous spray rinsing
- Immersion cleaning
- Ultrasonic cleaning
- Fresh rinse
- Air blow-off
- Heated drying

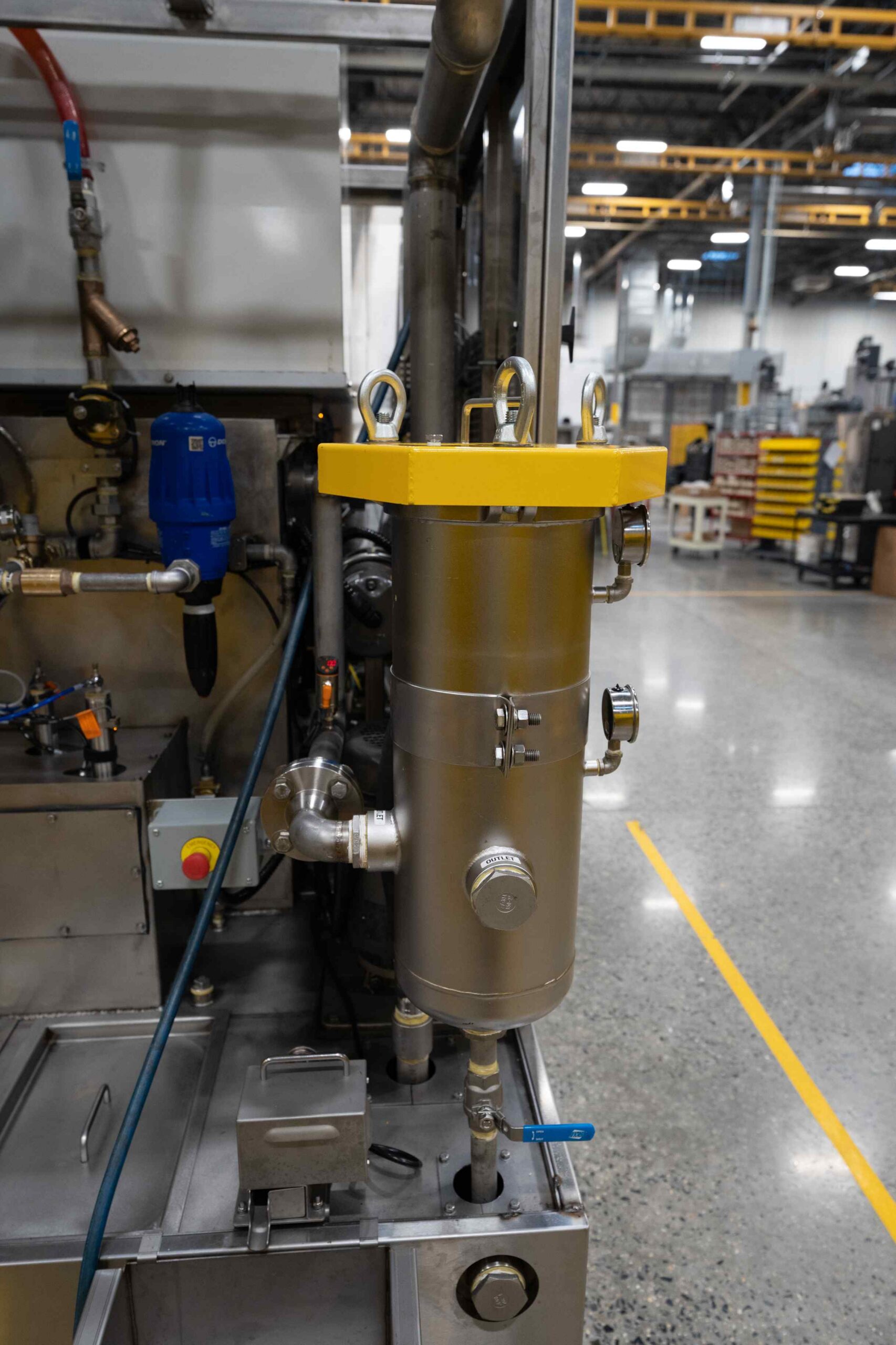

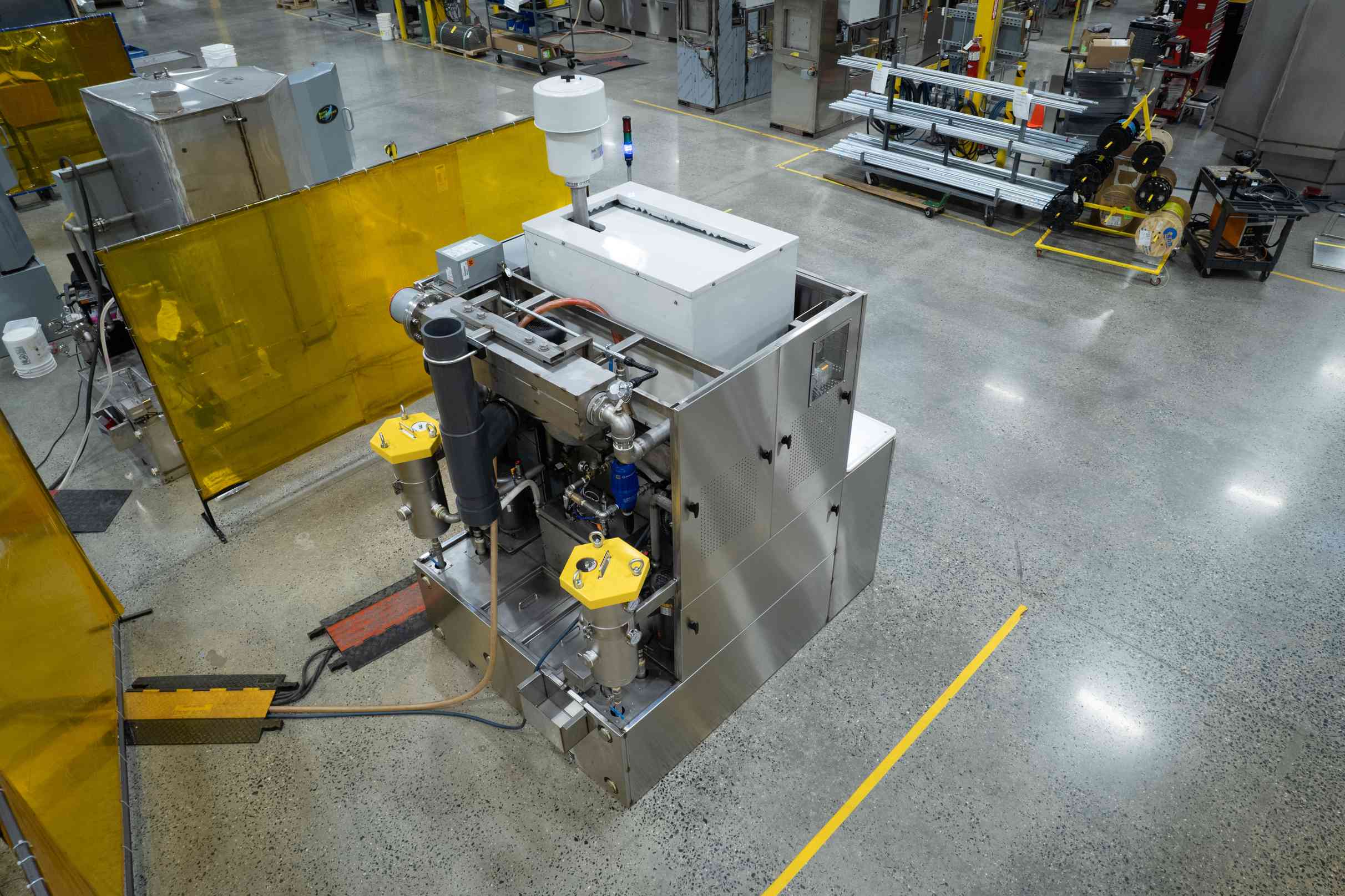

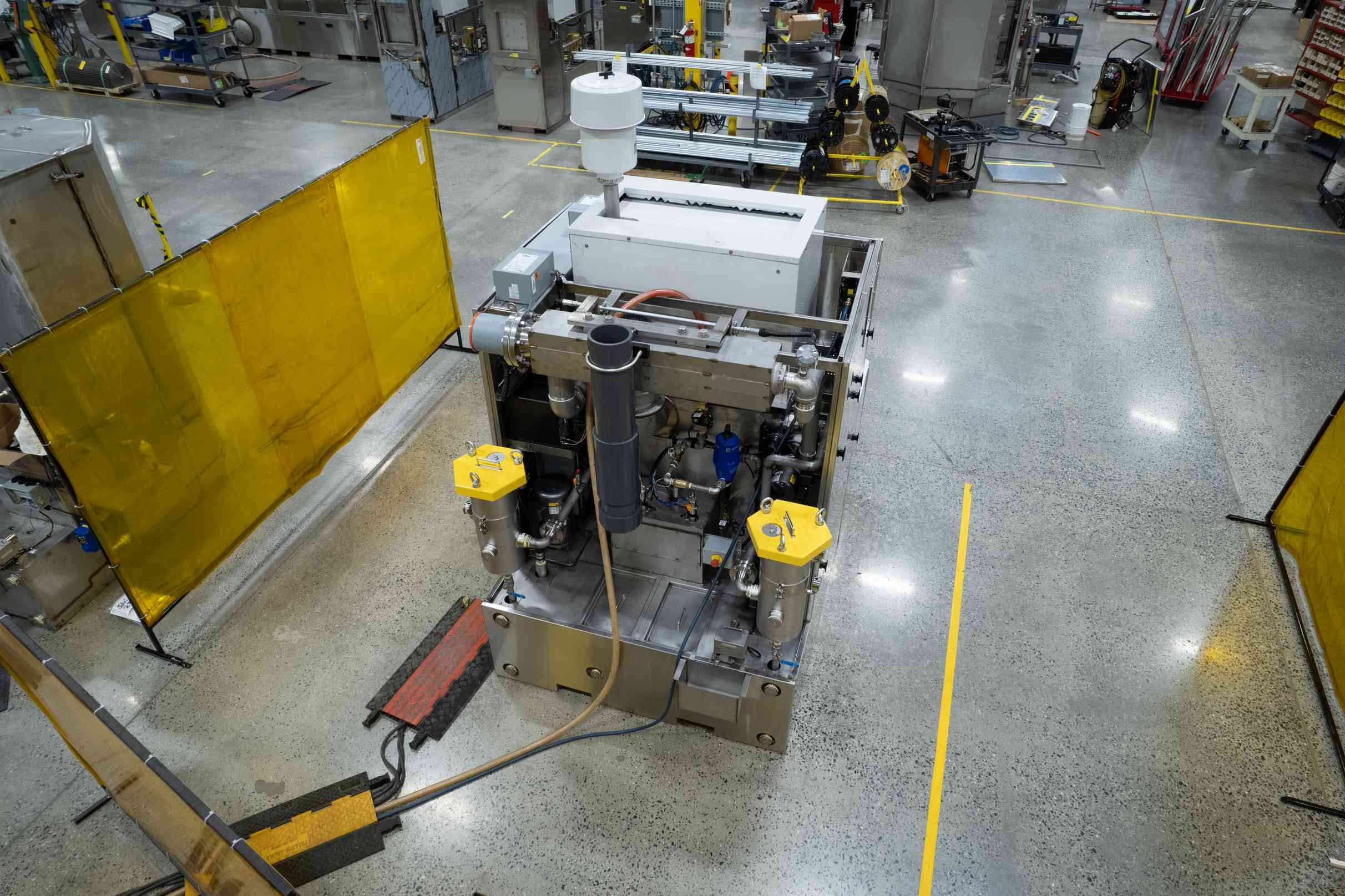

- Filtration and oil removal
- Custom part baskets or fixtures
- Manual, robotic, or automated loading options
- PLC/HMI controls and recipe-based cycle operation
This makes the Cyclojet a strong fit for manufacturers that need precision cleaning, flexible part handling, and repeatable results in a compact, automated system.

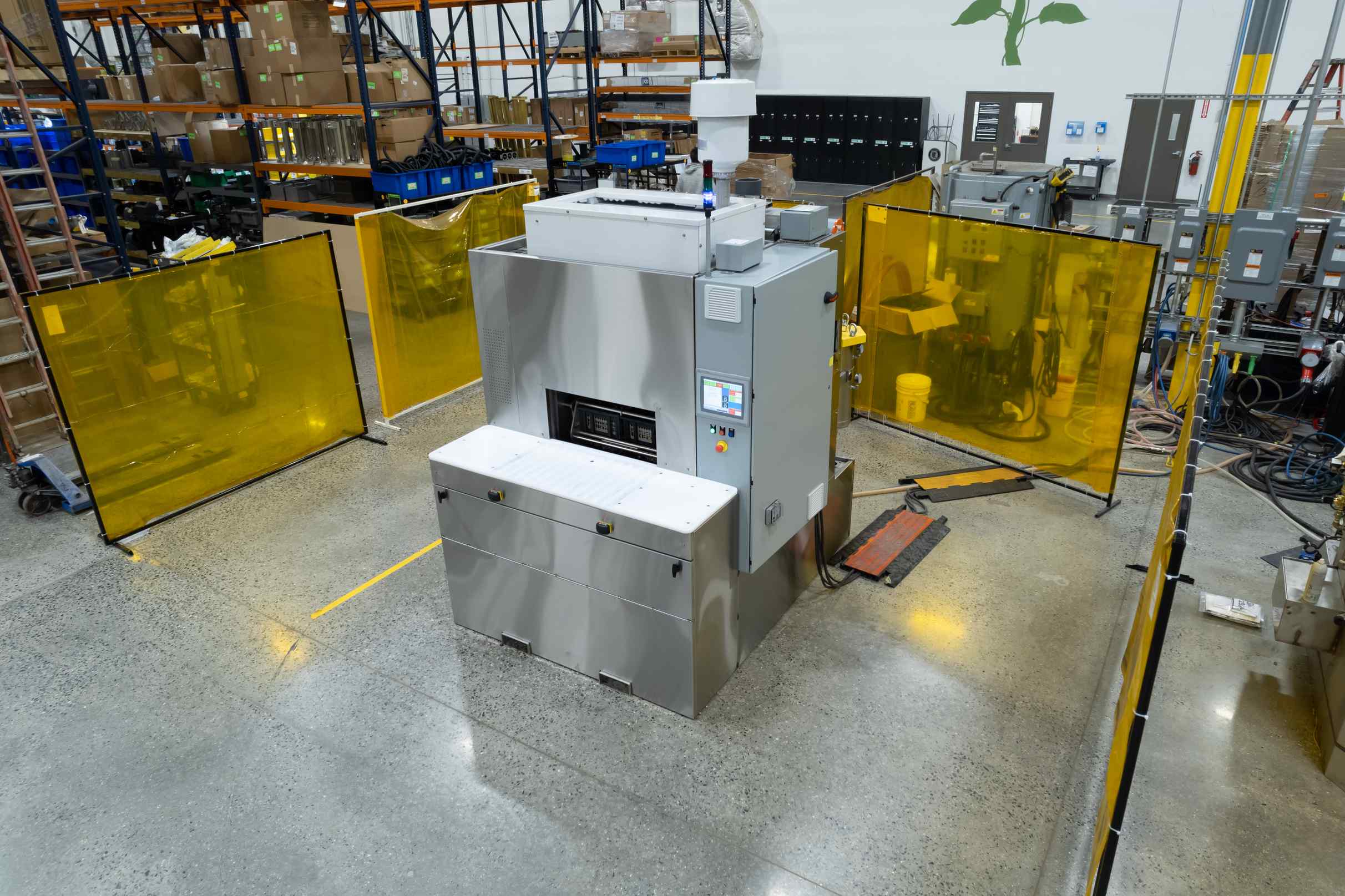

Built for Compact Production and Work Cells
Cyclojet rotary basket washers, also called basket parts washers, are ideal for production environments where floor space is limited but cleaning requirements are demanding. These compact systems give operators an automated, repeatable cleaning process that reduces manual washing, improves consistency, and supports reliable part cleanliness in work-cell environments.
Well suited for small, intricate, or high-value components, Cyclojet systems can be configured with 2, 4, 6, or 8 basket arrangements to match part volume, cycle time, and throughput requirements. The rotating basket design helps expose parts to spray, immersion, ultrasonic, rinse, blow-off, and drying stages from multiple angles, making it especially effective for components with threads, recesses, cavities, blind holes, and complex geometries.
Rotary basket washers are a strong fit for precision manufacturing areas, assembly operations, high-mix production environments, and facilities with tight cleanliness specifications, limited floor space, or mixed part families.
Flexible Part Handling

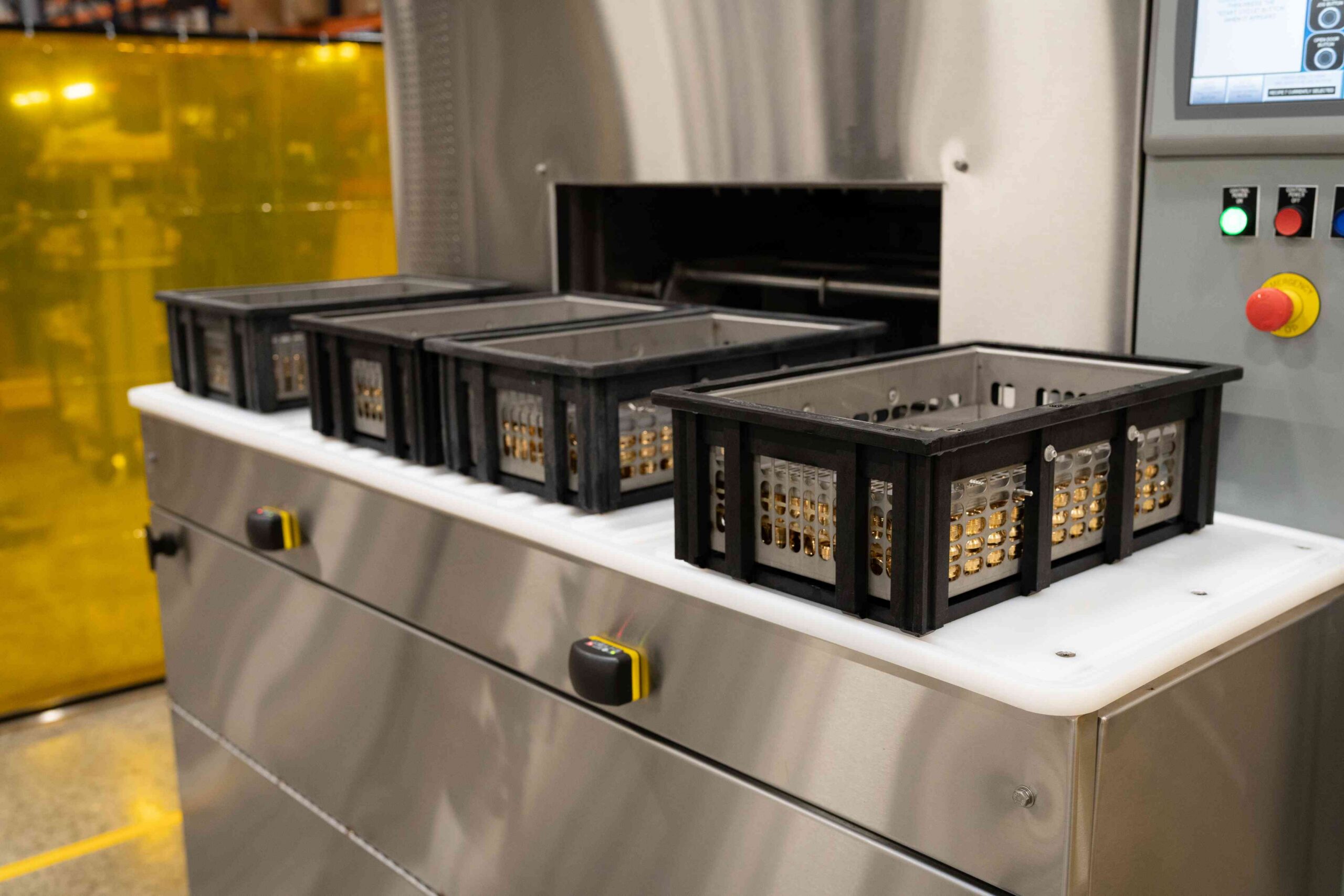

Cyclojet rotary basket washers can process parts in covered baskets, customer-supplied baskets, larger baskets for higher throughput, or specialized fixtures designed around the part geometry. This flexibility allows the system to handle a wide range of part sizes, materials, and cleaning requirements without forcing every application into a single basket style.
For delicate, precision, or high-value components, custom fixturing can help control part movement during the cycle while still allowing spray, immersion, ultrasonic energy, rinse water, blow-off air, and heated drying air to reach critical surfaces. This helps protect part quality while supporting thorough, repeatable cleaning of complex geometries, recesses, cavities, and other hard-to-reach features.
For higher-volume production environments, Cyclojet systems can also be integrated with automation for loading, unloading, part handling, conveyors, robotics, and work-cell integration. These automation options help reduce manual handling, improve throughput, and make the rotary basket washer a seamless part of the production flow.
Target Industries & Applications
The Cyclojet rotary basket washer is used across industries that require precise, repeatable cleaning for small parts, complex components, bulk materials, and basketed loads. Its compact footprint, multi-process cleaning capability, and flexible part handling make it a strong fit for manufacturers with tight cleanliness requirements and demanding production schedules.
Common industries and applications include:
- Automotive & EV components
- Defense components
- Aerospace & Space exploration components
- General manufacturing
- Medical device components
- Electronics and electrical components
- MRO and remanufacturing
- Fasteners and small metal parts
- Bearings, gears, shafts, and housings
- Stampings, castings, and forgings
- Bulk parts and basketed components
- Parts with threads, blind holes, recesses, cavities, and complex geometries
From high-volume bulk parts to delicate precision components, Better Engineering can configure a Cyclojet rotary basket washer around your part geometry, contamination profile, cleanliness requirements, and production flow.
Automation & Process Control
Cyclojet rotary basket washers use PLC-controlled cleaning cycles that allow operators to tailor the process to the specific part, soil load, and cleanliness requirement. Cycle recipes can be configured with the right combination of spray washing, immersion, ultrasonic cleaning, rinsing, air rinsing, blow-off, and drying to create a repeatable process for each application.
Cleaning stages can be repeated, skipped, or arranged in different sequences based on the required result. For example, a fresh rinse can be added between a recirculated wash and recirculated rinse to help purge the chamber and reduce carryover between stages.
Standard configurations support up to seven stages per cycle, with expanded options available upon request. Combined with HMI recipe management, adjustable cycle parameters, alarms, and optional data recording, the Cyclojet gives manufacturers a highly tunable cleaning platform for parts that require more than a one-size-fits-all wash cycle.
