Spline Shaft Cleaning
This company is a leading American manufacturer of automotive electrical components, instrument clusters, power-train systems, and automotive electronic products. Their products are used by major U.S. automobile manufacturers. One of the components they make is spline shafts. They wanted a new spline shaft washer to integrate into their manufacturing process.
Parts Cleaning Challenge
They needed to remove chips and oils from the shafts after the milling process. They also needed a parts washer that that would fit into their existing work cell (between a knurling machine and an induction heating unit).
The solution was a custom, compact spline shaft washer with a 6″ wide conveyor belt. Side rails keep shafts aligned on the belt. The overall system length is only 70 inches. All wetted parts are grade 304 stainless steel with an insulation cladding covering. The system runs off of 110V power.

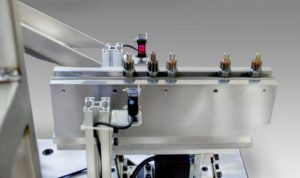

The customer’s pick and place unit automatically places the shafts onto the washer’s conveyor. The parts get washed, blown off, and then slide down a chute into the customer’s vibratory conveyor.
System features include a 75-gallon tank with automatic water level controls, a compressed air blow-off stage, a 2HP pump, a steam exhaust system, a NEMA-12 control panel, 7-day/24-hour timer, a digital thermostat for the heat tank, a variable speed controller for the conveyor belt, a lid interlock switch, and removable filter basket.
